Hook:
When components are subjected to environments of intense abrasive wear at elevated temperatures, selecting a hardfacing alloy that can maintain surface integrity and resist degradation is critical. The balance between high hardness for wear resistance and sufficient toughness for the application is a key consideration.
Product Overview:

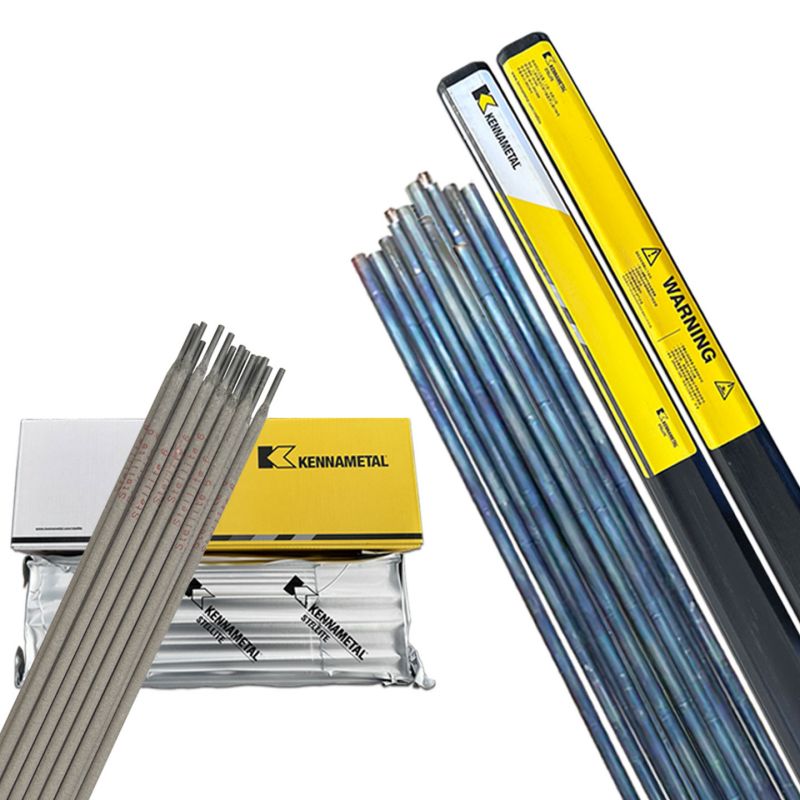

Stellite 12 cobalt based cast rods (AWS A5.21:2001 ERCoCr-B) are a cobalt-chromium-tungsten alloy formulated for overlay welding applications where enhanced resistance to abrasion and wear is required. The alloy features a higher tungsten content, which contributes to a higher matrix hardness and improved abrasion resistance in the deposited weld metal. The overlay is designed to offer a combination of corrosion resistance, heat resistance, and wear resistance, maintaining these characteristics at service temperatures up to approximately 800°C. The deposited metal retains machinability, allowing for post-weld finishing if needed.
Specifications & Properties:
Room Temperature Hardness: HRC 46-51
Available Diameters: 2.7mm, 3.2mm, 4.0mm, 4.8mm
Standard Length: 1000mm
Packaging: Standard packaging is available, with custom packaging specifications and requirements supported through contractual agreement.
Typical Applications: Stellite 12 cobalt based cast rods alloy is used for overlaying components that operate under high temperature, high pressure, and abrasive conditions. Common applications include high-pressure and high-temperature valves, internal combustion engine valves, various blades in the chemical industry, high-pressure pump sleeves, wood saw blades, hot rolling finish pass rolls, and screw feeders.
Welding Methods: Suitable for overlay welding using the oxy-acetylene (with a carburizing flame) and Gas Tungsten Arc Welding (GTAW/TIG) processes.
Consultation & Selection:
Choosing the correct hardfacing material depends on the specific wear mechanism (abrasion, erosion, impact), operating temperature, and base material. Contact our technical specialists to discuss whether Stellite 12 cobalt based cast rods are the appropriate solution for your component rebuild, hardfacing, or overlay welding project in demanding sectors like valve manufacturing, chemical processing, and heavy equipment.
